thermOweld Accessories

thermOweld Copper Adapter Sleeves

Adding a copper sleeve to the cable will increase the outside diameter, that in return results in the need for a larger welder than would normally be required for the size of cable being used.

Cable Size		Use Adapter Sleeve Part. No.	Use in Mold for Conductor Size
Stranded	Solid		Stranded	Solid
#12, #14	#10, #12, #14	A-200	#6	#6
#10	#8, #10	A-201	N/A	#4
#9, #10	#8, #9, #10	A-208	#4	N/A

thermOweld Accessories

THERMOWELD Part Number	Description
38-0329-00	Copper Shim Stock
49-0319-01	Mold Cleaner
40-6641-00	Vertical Surface Clamp
38-0904-00	30" Extension Flint Ignitor
38-0308-00	Screw Driver
38-0306-00	Card Cloth Brush
38-0309-00	Flint Ignitor
38-0309-01	Replacement Flints (10 per pack)
38-0101-00	Rasp
38-3922-00	Natural Bristle Brush
38-0305-00	Wire Brush

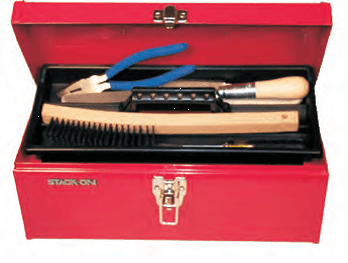

38-0302-00	Tool Box Kit
38-4129-00	1 lb Packing Material
38-4129-05	5 lb Packing Material
40-4565-00	Pk18 Handle Clamp
