Burndy Crimpits
Burndy Split Bolts and Crimpits

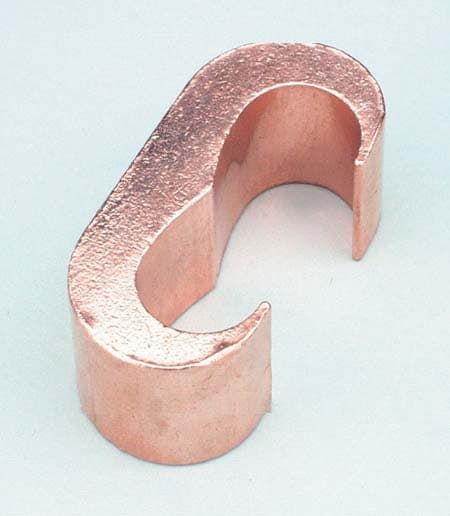

Spliced wire connections are common to both galvanic and impressed current cathodic protection systems. Split bolts and crimpits by Burndy are the mechanical means for making these connections. They are composed of high purity copper and provide superior conductivity for anode leads, negative returns, grounds, or any other type of spliced wire connection. Burndy crimpits are "C" type connectors which can be used with a wide range of wire diameters, from #14 to #4.0 AWG. Because they are attached under high compression using special crimping tools, they form a permanent bond which can be electrical insulated with standard encapsulation kits. Split bolts can also accommodate many different conductors. Their-free running threads and easy to grip wrench flats ensures maximum pressure and a secure mechanical bond. In addition, they are resistant to cracking and corrosion.
Burndy split bolts and crimpits have a proven track record for long-life performance. They are manufactured under strict quality control standards and meet all the requirements established by Underwriters Laboratories and the Canadian Standards Association.
| Item # | Run | Tap | Length | Die Index | Conductor | Range for Equal Run & Tap | Min. Tap with Max Run |
| YC10C10 | 12 sol-10 str | 12 sol-10 str. | 3/8 in | 238 | N/A | N/A | N/A |
| YC8C8 | 8 sol - 8 str | 10 sol - 8 str | 1/2 in | 162 or K | N/A | N/A | N/A |
| YC4C8 | 6 sol- 4 str | 8 sol- 8 str | 3/4 in | BG or 5/8" | N/A | N/A | N/A |
| YC4C6 | 6 sol- 4 str | 6 sol- 6 str | 3/4 in | BG or 5/8" | N/A | N/A | N/A |
| YC4C4 | 6 sol-4 str | 4 sol- 4 str | 3/4 in | BG or 5/8" | N/A | N/A | N/A |
| YC2C4 | 2 sol- 2 str | 8 sol- 4 str | 7/8 in | C | N/A | N/A | N/A |
| YC2C2 | 2 sol- 2 str | 2 sol- 2 str | 7/8 in | C | N/A | N/A | N/A |
| YC26C2 | 1/0 sol - 2/0 str | 8 sol-2 str | 1 in | E or O | N/A | N/A | N/A |
| YC26C26 | 1/0 sol - 2/0 str | 1/0 sol - 2/0 str | 1 in | E or O | N/A | N/A | N/A |
Available Products
| Product Name | Quote | Specs |
|---|---|---|
| Crimpits- 2 sol - 2 str run to 2 sol - 2 str tap | ||
| Crimpits- 2 sol - 2 str run to 8 sol - 4 str tap | ||
| Crimpits- 6 sol - 4 str run to 4 sol - 4 str tap | ||
| Crimpits-1/0 sol - 2/0 str run to 1/0 sol - 2/0 str tap | ||
| Crimpits-1/0 sol - 2/0 str run to 8 sol - 2 str tap | ||
| Crimpits-12 sol - 10 str run to 12 sol - 10 str tap | ||
| Crimpits-6 sol - 4 str run to 6 sol - 6 str run | ||
| Crimpits-6 sol - 4 str run to 8 sol - 8 str tap | ||
| Crimpits-8 sol - 8 str run to 10 sol - 8 str tap |
