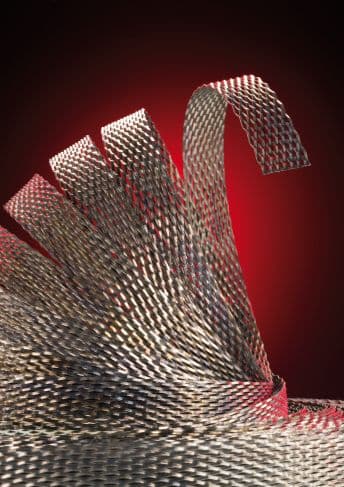

LIDA® Mesh Ribbon Anodes
LIDA® Net Mesh Anode is the leading mixed metal oxide anode technology. Reliability is proven with over 110,000 square meters of installed anode surface area in more than 30 countries.
Advantages
· Even current distribution the highly expanded mesh pattern provides uniform cathodic protection current to the rebars.
· Pre-fabricated the LIDA® Net Anode arrives at the job site ready to be rolled out, fastened down and connected.
· Quick all weather installation no need to wait for curing, mixing of chemicals, cutting of slots or spraying of paints; there are no electrical splices in the concrete.
· Activation coating mixed metal oxide coating; the LIDA® Net produces mainly oxygen.
· Quality Control LIDA® Net Anode is manufactured under strict quality control procedures, quality control certificates are provided on request.
|
Technical Data |
Unit |
LIDA® CN 15 |
|
LIDA® CN 35 |
|
Maximum rated current output per unit of concrete surface |
mA/m² |
20 |
30 |
40 |
|
FHWA maximum anode current density |
mA/m² |
110 |
110 |
110 |
|
Expected design life |
Years |
100 |
100 |
100 |
|
Substrate composition |
ASTM B 265 Titanium grade | |||
|
Catalyst |
Mixed Metal Oxide for Oxygen Evolution | |||
|
Nominal diamond dimensions |
mm |
85x38 |
62x22 |
40x19 |
|
Nominal thickness (Approx) |
mm |
1.8 |
1.8 |
2 |
|
Lengthwise Electrical Resistance (1.2mm wide strip) |
Ohm/m |
0.080 |
0.070 |
0.039 |
|
|
Widthwise Electrical Resistance | |||
|
With Current distributor Type 1 |
Ohm/m |
0.013 |
0.011 |
0.009 |
|
With Current distributor Type 2 |
Ohm/m |
0.017 |
0.013 |
0.011 |
|
|
NET roll nominal dimensions | |||
|
Width |
m |
1.2 |
1.2 |
1.2 |
|
Length |
m |
50 |
50 |
50 |
|
Weight per roll (Approx) |
Kg |
10 |
13 |
16 |
|
Weight/m² of NET (Approx) |
KG/m² |
0.16 |
0.22 |
0.27 |
|
Current Distributor |
Dimensions |
Electrical Resistance | ||
|
Type 1 |
15mm (width) x 1 mm (thickness) |
0.037 Ohm/m | ||
|
Type 2 |
10mm (width) x 0.5 mm (thickness) |
0.11 Ohm/m |
||
Available Products
| Product Name | Quote | Specs |
|---|---|---|
| Lida Mesh LM1.25x48 |
