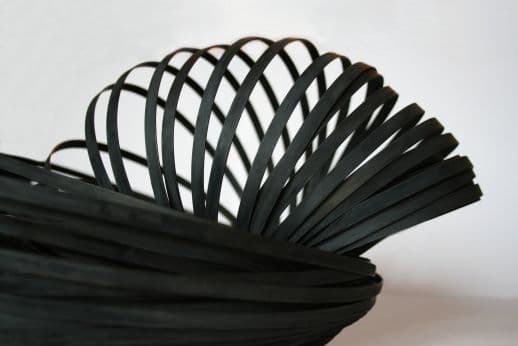

LIDA® Ribbon Anode
The LIDA® Grid anode-originally developed for the cathodic protection of steel reinforced concrete structures, it has found a specific application in CP of above ground storage tank, in particular when secondary containment is present.
Advantages
-
It allows to design distributed anode systems in order to reach uniform protection and current distribution
-
Easy to handle and install
-
Effectively stops the external corrosion on the tank bottoms
-
No requirement for calcined petroleum coked backfill, saving time during installation
-
Environmentally friendly, avoiding the need for drilling and reducing risks, with a secondary containment membrane, in case of liquid leak
-
Low life-cycle costs and extended anode life of over 50 years
Applications
-
Ground Storage Tank
-
New Tank installations with secondary containment liners.
Material Specifications
|
Tank Mesh Ribbon |
Unit |
Type 1 |
Type 2 |
|
Current Rating at 10 A/m² |
mA/m |
480 |
240 |
|
Current density MAX |
A/m² |
10 |
10 |
|
Dimensions Width |
mm |
20 |
10 |
|
mm |
0.9 |
0.9 |
|
m |
|
|
|
Weight (approx) per roll of 26 m |
g/roll |
738 |
369 |
|
Electrical Resistance |
Ohm/m |
0.22 |
0.43 |
|
Max Expected design life |
Years |
50 |
50 |
Material Specification
|
Tank Solid Ribbon |
Unit |
1/4" Ribbon |
1/2" Ribbon |
|
Current Rating |
mA/m |
15.1 |
30.2 |
|
Dimensions Width |
mm |
6.3 |
12.7 |
Thickness |
mm |
0.63 |
0.63 |
|
Cross Section |
mm² |
4.03 |
8.06 |
|
Surface Area |
m²/m |
0.014 |
0.0266 |
|
Weight |
g/m |
18.2 |
36.4 |
|
Electrical resistance |
Ohm/m |
0.14 |
0.069 |
Available Products
Don't see what you're looking for?
Contact our Corrosion Experts for help!
